Custom Indexes

Xoak provides some built-in adapters for xarray.indexes.NDPointIndex ; it is easy to create custom ones.

import numpy as np
import xarray as xr

Example: add a brute-force “index”

This example adapter simply performs brute-force nearest-neighbor lookup by computing the pairwise distances between all index and query points and finding the minimum distance.

from collections.abc import Mapping
from typing import Any

from sklearn.metrics.pairwise import pairwise_distances_argmin_min
from xarray.indexes.nd_point_index import TreeAdapter


class BruteForceTreeAdapter(TreeAdapter):
    """Brute-force nearest neighbor lookup."""

    def __init__(self, points: np.ndarray, options: Mapping[str, Any]):
        self._index_points = points

    def query(self, points: np.ndarray) -> tuple[np.ndarray, np.ndarray]:
        positions, distances = pairwise_distances_argmin_min(points, self._index_points)
        return distances, positions

    def equals(self, other: "BruteForceTreeAdapter") -> bool:
        return np.array_equal(self._index_points, other._index_points)

Let’s use this adapter in the basic example below:

# create mesh
shape = (20, 20)
x = np.random.uniform(0, 100, size=shape)
y = np.random.uniform(0, 100, size=shape)

field = x + y

ds_mesh = xr.Dataset(
    coords={'meshx': (('x', 'y'), x), 'meshy': (('x', 'y'), y)},
    data_vars={'field': (('x', 'y'), field)},
)

# set the brute-force index (doesn't really build any index in this case)
ds_mesh = ds_mesh.set_xindex(
    ['meshx', 'meshy'],
    xr.indexes.NDPointIndex,
    tree_adapter_cls=BruteForceTreeAdapter,
)

# create trajectory points
ds_trajectory = xr.Dataset({
    'trajx': ('trajectory', np.linspace(0, 100, 20)),
    'trajy': ('trajectory', np.linspace(0, 100, 20))
})

# select mesh points
ds_selection = ds_mesh.sel(
    meshx=ds_trajectory.trajx,
    meshy=ds_trajectory.trajy,
    method="nearest",
)

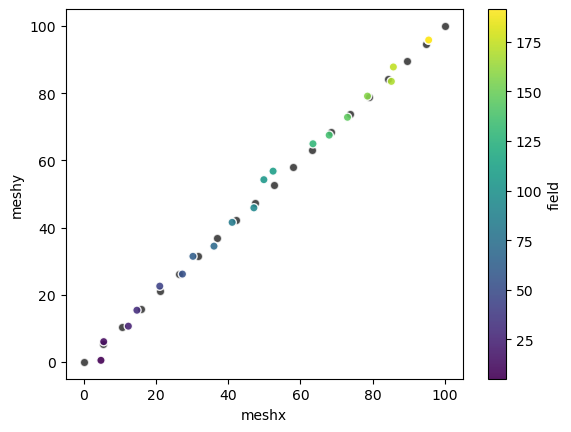

# plot results
ds_trajectory.plot.scatter(x='trajx', y='trajy', c='k', alpha=0.7);
ds_selection.plot.scatter(x='meshx', y='meshy', hue='field', alpha=0.9);
